Most people building a first hi-fi system make the same mistake: they start with the amplifier or the source — the component they're most excited about — and then try to make everything else fit around it. This approach almost always produces a system that underperforms relative to its cost. The right way to build a hi-fi system is to start with the speakers and work backward.
Speakers are the most influential component in any audio system. They have the widest variation in performance, they impose the most demanding electrical requirements on everything upstream, and they interact most directly with your room. Choose them first, understand what they need, and then select every other component to serve them well.
Step 1: Choose Your Speakers First
Start with the speakers — always
Before looking at amplifiers, DACs, or turntables, decide on your speakers. Consider your room size, listening distance, and whether you want bookshelfs (requiring stands or placement on furniture) or floorstanders. The two specifications that matter most at this stage are nominal impedance and sensitivity.
Nominal impedance is typically 4 Ω or 8 Ω. Lower impedance speakers draw more current from the amplifier and are harder to drive — they need a more capable amplifier. A 4 Ω speaker paired with an amplifier that is not stable into 4 Ω loads will cause the amplifier to overheat, distort, and potentially fail. Make sure any amplifier you choose is rated for your speaker's impedance.
Sensitivity determines how efficiently the speaker converts amplifier power into sound. A speaker rated at 90 dB/W/m produces 3 dB more output than an 87 dB/W/m speaker from the same amplifier — the same gain you would get by doubling the amplifier's power. Speakers rated 88 dB or more can sound satisfying with modest amplifiers of 30–50 watts. Low-sensitivity speakers (84 dB and below) genuinely need 100 watts or more to reach realistic listening levels in an average room without compression.
Compatibility tip: Write down your chosen speaker's nominal impedance and sensitivity before shopping for an amplifier. These two numbers define what you need.
Step 2: Match Your Amplifier to the Speakers
Choose an amplifier that drives your speakers confidently
With your speaker's impedance and sensitivity in hand, look for an amplifier that is explicitly rated stable into your speaker's impedance, and whose power output is appropriate for your room and listening habits.
A rough guideline: in an average-sized listening room (12×15 feet), 50 watts into 8 Ω is adequate for speakers at 88 dB or above. For 85 dB speakers, 100 watts is a more comfortable starting point. For large rooms or very dynamic listening, double those figures.
More important than peak power is the amplifier's ability to deliver current into the load your speaker presents. Current delivery — measured in amps peak per channel — determines how well the amplifier controls the speaker on complex transients. An amplifier with 20 amps peak current delivery will sound more composed and dynamic than one with 10 amps, even at the same rated power output.
Check the amplifier's input sensitivity: the voltage required at the amplifier's input to drive it to full power. Most power amplifiers require 0.7–2 V for full output. Your preamplifier or DAC must be able to supply this voltage. If the amplifier needs a lot of input voltage for full output (say, 4 V) and your source outputs only 2 V, you will never reach full power.
Step 3: Choose Your Source
Digital, vinyl, or both — pick your primary source
A source component converts a stored recording into an analog signal. For digital audio this is a DAC or streaming device. For vinyl this is a turntable, tonearm, and cartridge — a three-component subsystem of its own.
For a primarily digital system, a quality DAC or network streamer with an integrated DAC is often the best starting point. Look for an output voltage of 2–4 V RMS (matching the sensitivity of your preamplifier or amplifier), an output impedance below 200 Ω, and support for the file formats and sample rates you listen to.
For a vinyl-based system, the chain is: turntable → phono cartridge → phono preamplifier → line preamp or integrated amplifier. Each link must be matched to the next. The cartridge's output voltage must match the gain of the phono stage. The cartridge's compliance must match the tonearm's effective mass. The phono preamp's output impedance must be much lower than the amplifier's input impedance. This is the most complex compatibility chain in audio — and the reason the AudioChainHiFi analyzer focuses heavily on it.
Step 4: Add a Preamplifier (If Needed)
Do you need a separate preamp?

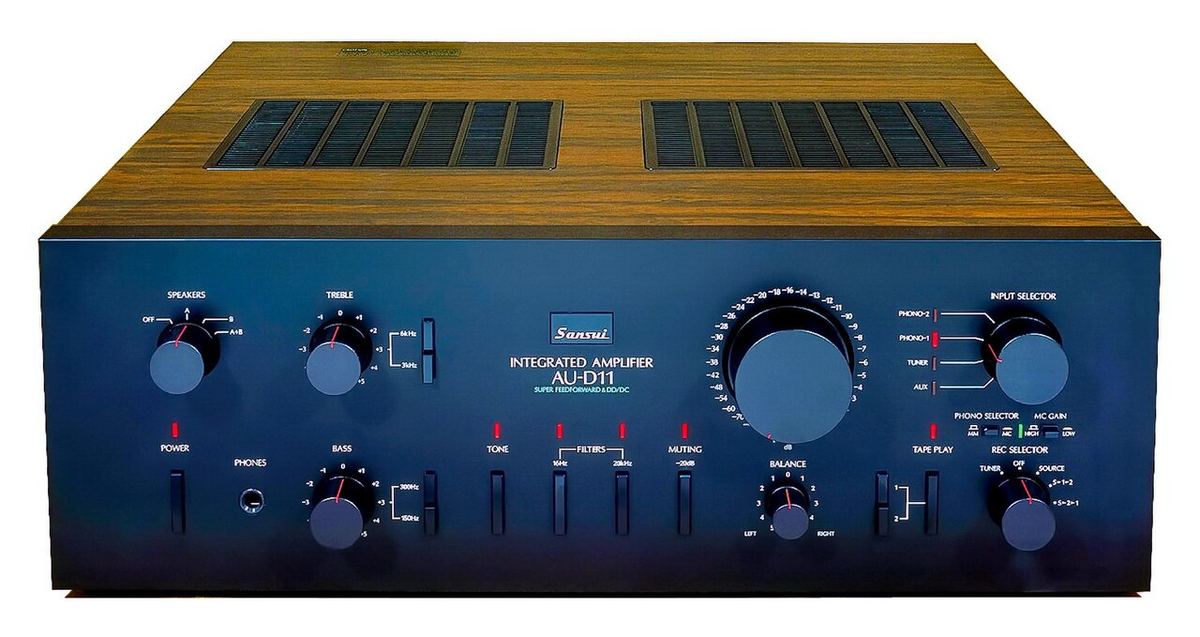

If you are using a power amplifier without a volume control, you need a preamplifier to control level and switch between sources. If you are using an integrated amplifier (which combines preamp and power amp), you may not need a separate unit.
A preamplifier's critical specifications for compatibility are its output impedance (should be at least 10x lower than the power amp's input impedance — ideally below 500 Ω) and its maximum output voltage (should be high enough to drive the power amplifier to full output with your source). A preamp with a 5 V maximum output driving a power amp with a 1 V input sensitivity gives excellent gain margin. The reverse — a preamp maxing out at 1 V driving an amp needing 2 V — means you can never reach full power.
Step 5: Connect Everything and Check the Gain Structure
Verify gain staging before you listen
Before playing music at volume, check where your volume control sits when playing at comfortable listening levels. It should be usable across a reasonable range — ideally between 8 and 4 o'clock on a rotary control. If you are at full volume and still need more, you have a gain deficit. If you cannot raise the volume above 9 o'clock without it being too loud, you likely have too much gain.
Gain problems can often be addressed by adjusting the gain switches on your amplifier or phono stage, or by adding a passive attenuator. They cannot be solved by buying more expensive cables.
Step 6: Verify Compatibility Before You Buy
Check the whole chain — not just individual components
Before purchasing any component, verify that it is compatible with every other component in your planned system. Check impedance ratios at every interface. Check that the phono cartridge loading matches your phono stage. Check that your speaker's impedance and sensitivity are within the amplifier's designed operating range. This is exactly what the AudioChainHiFi analyzer does — automatically.
Three Example Starter Systems
The six steps apply at any budget. To make them concrete, here is how a first system might be divided at three spending levels, following the proportions in the budget allocation guide. Exact models change constantly, so these describe the types of component to look for.
- Compact and simple (around 1,000 in your currency): a pair of bookshelf speakers of 86–88 dB sensitivity on proper stands, and an integrated amplifier with a built-in DAC and streaming. Two boxes plus speakers, one remote, and nothing to match beyond the amplifier and speaker.
- Room to grow (around 3,000): better stand-mount or compact floorstanding speakers, an integrated amplifier with a pre-out for a future power amp or subwoofer, a separate streamer or DAC, and a little room treatment at the first reflection points.
- Vinyl first (around 2,500): the same speakers and integrated amplifier as the compact system, with the budget shifted toward a good turntable and arm, a moving-magnet cartridge, and a phono stage — or an integrated amp whose built-in phono stage is good enough to start with.
In every case, the speakers come first and set what the amplifier must do. Notice what is not on the list: expensive cables, power conditioners and isolation accessories. Those can wait until the core system is right.
Day-One Setup Checklist
- Place the speakers before connecting anything. Start with an equilateral triangle between the two speakers and your seat, each speaker a short distance from the wall behind it, tweeters at ear height. The speaker placement guide has a full routine.
- Connect the speakers with consistent polarity: red (+) on the amplifier to red (+) on the speaker, black to black, on both channels. Ordinary 16 AWG speaker cable is ample for typical runs.
- Start with the volume at minimum and raise it slowly the first time you play anything.
- Check left and right. Use a channel-identification track, or any recording where you know which side an instrument should be on.
- Check polarity by ear. If the bass sounds thin and the centre image vague or hard to place, one speaker's wires are probably reversed.
- Note where the volume control sits at your normal listening level, as Step 5 describes.
Common First-System Mistakes
- Choosing an amplifier by its headline wattage instead of its rating into your speaker's impedance.
- Buying speakers too large for the room, which usually means boomy, uneven bass that no amplifier can fix.
- Skipping stands and putting bookshelf speakers on a low shelf or inside a cabinet, where they lose much of the imaging and clarity you paid for.
- Spending on accessories early. Cables, power products and isolation feet make little difference until the speakers, amplifier and placement are right.
- Ignoring the room. Hard, bare rooms sound bright and echoey; a rug, curtains and a few soft furnishings help more than most component swaps.
- Mismatching a turntable's preamp — plugging a turntable with its built-in preamp switched on into a phono input, or one without a preamp into a line input. The phono stages guide explains the difference.
Planning Upgrades
A first system does not have to be a final one, but upgrades work best with a plan. Change one component at a time, so you know what each change did. When comparing two components, match their volume carefully — a difference of even 1 dB tends to make the louder one sound "better," which misleads more comparisons than any other factor.
As a rule, the order of greatest effect is: speaker placement and room first (free or cheap), then the speakers themselves, then an amplifier with more current if your speakers need it, and the source last. If you started with vinyl, a better cartridge on a capable arm is often the most audible single upgrade. Whatever you change, check its compatibility with the rest of the chain before buying — the same check as Step 6.
Quick Reference: Building Your First System
| Step | What to Check | Target |
|---|---|---|
| 1. Speakers | Nominal impedance and sensitivity | Suited to your room size; note both numbers |
| 2. Amplifier | Power and stability into your speaker's impedance | Rated into 4 Ω if the speaker is 4 Ω; enough power for its sensitivity |
| 3. Source | Output voltage and impedance; for vinyl, the whole phono chain | ~2 V output, under 200 Ω; cartridge matched to arm and phono stage |
| 4. Preamp (if needed) | Output impedance and maximum output | ≤1/10 of the power amp's input impedance; enough voltage for full power |
| 5. Gain structure | Volume position at normal listening level | Comfortably mid-range on the control, not at either extreme |
| 6. Compatibility | Every interface in the chain | Check before you buy |
